X-fix wood connector C 96/130/90 R15

Wooden connector X -fix C 96-130-90 R15

The new, stronger version with better static properties and optical and fire protection advantages.

Ideal for CLT ceilings and interior walls from 120 mm 3s, also suitable for wall and ceiling connections.

Optimized fire protection and optimized milling times, improved static properties at the same prices as well as lower system costs compared to the classic X-fix C R10 model.

Technical data:

Length: 90mm

Width: 96mm

Height: 130mm

Material: birch plywood

Tensile and shear load capacity 28 kN according to ETA 18/0254

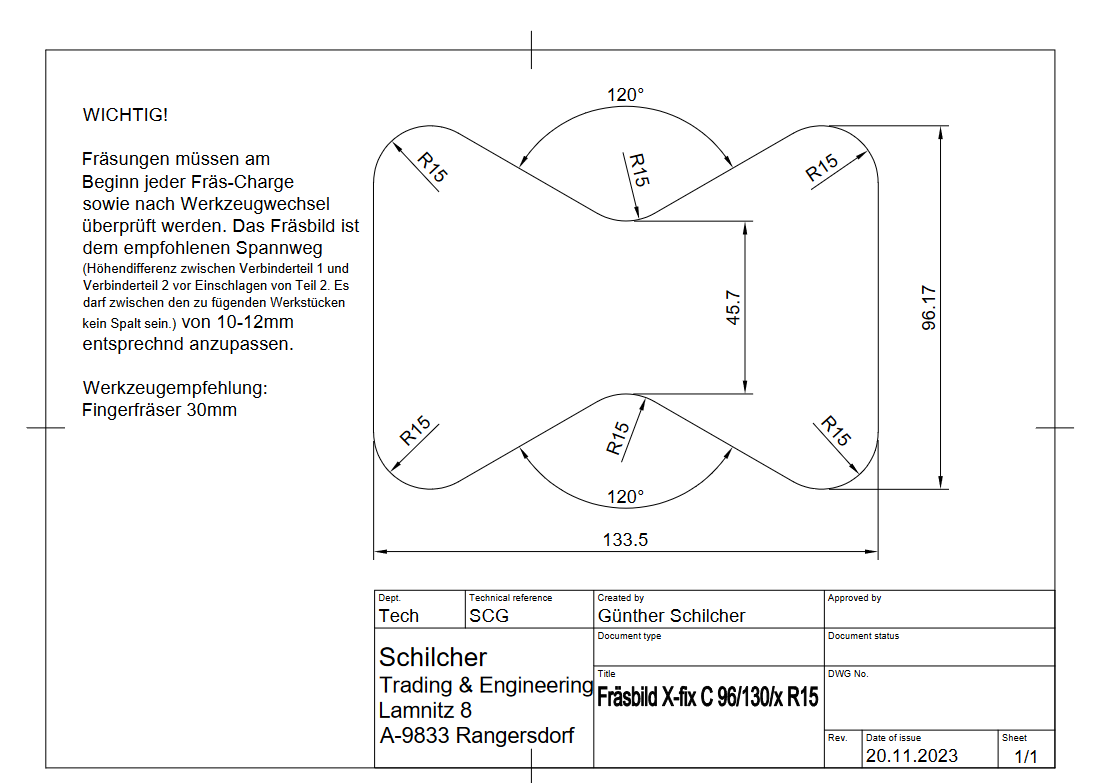

Milling image: PDF

Area of ​​application: ideal for BSP ceilings and interior walls from 120 mm 3s, also suitable for connecting walls and ceilings.

• Wooden elements made of cross-laminated timber, glulam and DUO beams or construction beech are permanently, stable and securely connected using the two-part X-fix C wooden connectors

• Wall, ceiling and roof elements are clamped together automatically and without any additional aids, conventional screws are not required and the positive wood-to-wood connection creates exactly parallel lines

• The assembly of X-fix C works by inserting the first part into the prefabricated milling, then inserting the second part and fixing it by hammering it in with a hammer

Advantages
• Very quick assembly time
• Positive connection ideal for visible surfaces
• No beam tension required for ceiling connections
• Thanks to the wedge shape, even large-format ceiling tiles can be pulled together independently
