X-fix

X-fix wood connector C 96/130/130 R15

X-fix wood connector C 96/130/130 R15

Regular price Login to see prices
Regular price Login to see prices Sale price Login to see prices
Sale Sold out
variants

Wooden connector X -fix C 96/130/130 R15, conically divided double dovetail.

The new, stronger version with better static properties and optical and fire protection advantages.

Ideal for visible surfaces indoors, but also outside as a visible connecting element.

Optimized fire protection and optimized milling times, improved static properties at the same prices as well as lower system costs compared to the classic X-fix C R10 model.

The strongest connector in the patented X -fix C 96/130 R15 series with a length of 130 mm. For solid cross-laminated timber panels from 150 mm and high static loads.

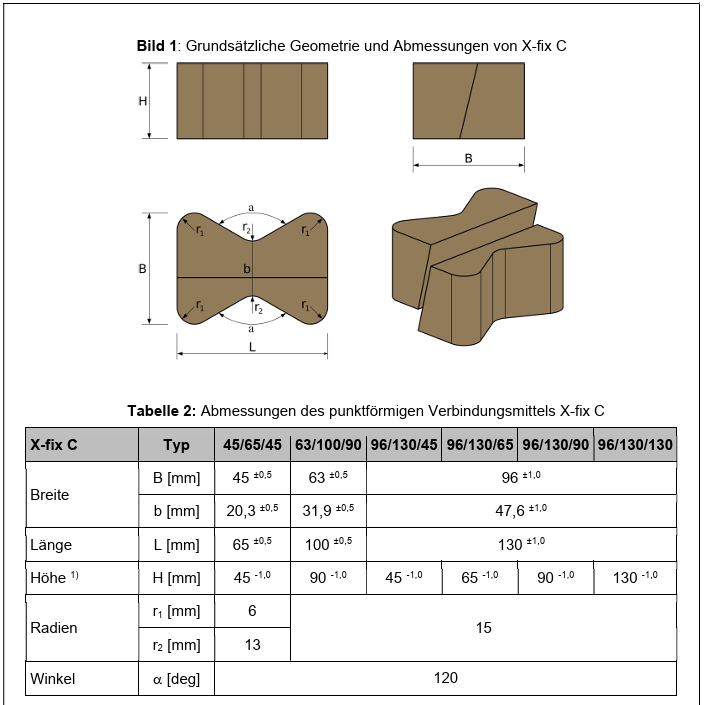

Technical data:

Length: 130mm

Width: 96mm

Height: 130mm

Material: birch plywood

Tensile and shear load capacity 40 kN according to ETA 18/0254

Milling image: PDF

Area of ​​application: ideal for CLT ceilings and interior walls from 150 mm 5s, also suitable for connecting walls and ceilings.

  • Wooden elements made of cross-laminated timber, glulam and DUO beams or construction beech are permanently, stable and securely connected using the two-part X-fix C wooden connectors
  • Wall, ceiling and roof elements are clamped together automatically and without any additional aids, conventional screws are not required and the positive wood-to-wood connection creates exactly parallel lines
  • The assembly of X-fix C works by inserting the first part into the prefabricated milling, then inserting the second part and fixing it by hammering it in with a hammer


Advantages
• Very quick assembly time
• Positive connection ideal for visible surfaces
• No beam tension required for ceiling connections
• Thanks to the wedge shape, even large-format ceiling tiles can be pulled together independently
